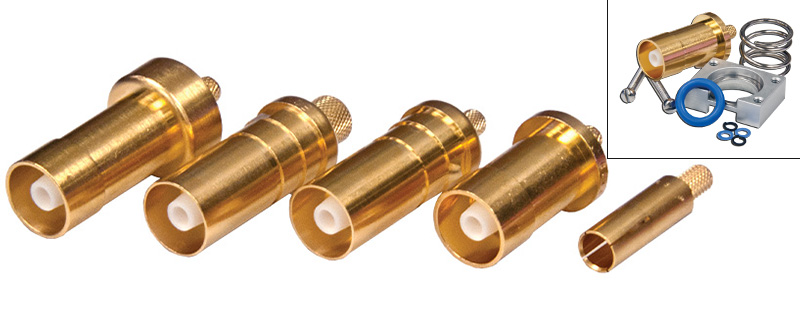

Main: ARINC-compatible coaxial contacts / Inset: Complete kit
Our ECS brand RF contacts for ARINC 404 and ARINC 600 connectors come as complete kits ready to be installed in standard size 1 or size 5 cavities. See the table below for compatibility with the complete line of ECS avionics RF cables.
| Cable Part # | ARINC 404 Size 1 |
ARINC 600 Size 1 |
ARINC 600 Size 1RF |
ARINC 600 Size 5 |
|---|---|---|---|---|
| 532101 | LM522 | L5122 (IGES, STEP) |
M5122 | P522 (IGES, STEP) |
| 432101 | LM522 | L5122 (IGES, STEP) |
M5122 | P522 (IGES, STEP) |
| 352001 | LM3522 | L35122 | M35122 (IGES, STEP) |
P3522 (IGES, STEP) |
| 3C058A | LM722 (IGES, STEP) |
L7122 (IGES, STEP) |
M7122 | 620021 |
| 3C142B | LM722 (IGES, STEP) |
L7122 (IGES, STEP) |
M7122 | 620021 |
| 311901 | LM722 (IGES, STEP) |
L7122 (IGES, STEP) |
M7122 | 620021 |
| 421601 | LM922 (IGES, STEP) |
L9122 | M9122 | P922 |
| 311601 | LM922 (IGES, STEP) |
L9122 | M9122 | P922 |
| 311501 | LM922 (IGES, STEP) |
L9122 | M9122 | P922 |
| 421201 | LM122 | L1122 (IGES, STEP) |
M1122 | P122 |
| 311201 | LM122 | L1122 (IGES, STEP) |
M1122 | P122 |
| 310801 | LM022 (IGES, STEP) |
L0122 | M0122 | N/A |
| 310701 | N/A | L0102 (IGES, STEP) |
N/A | N/A |
Half the diameter of RG cables and up to 75% lighter than MIL-C-17 standard cables.
Designed and fabricated to meet industry specifications including MIL-C-39012, ARINC 600, and ARINC 404, our rugged and durable ECS brand Avionics RF Connectors seal out moisture and hydraulic fluids, are durable enough to withstand extreme environmental variations in temperature and pressure, and resist vibration.
High-performance, lightweight and quality assemblies to reduce your operational costs.
ECS Avionics RF Assemblies datasheet
Portable Coaxial Cable Stripper Kit datasheet
