AVANCE™ L3 Tray


Amphenol CIT is pleased to offer turnkey integration kits for the Gogo AVANCE™ L3/L5/L5i Air-To-Ground (ATG) system. These kits are ideal for all installations where customized engineering is expensive and unnecessary.

Coax and Harness kits are engineered to custom cabling lengths and connectors to match your installation needs. The trays are engineered per the Gogo specification. Amphenol CIT’s engineering team is available to answer questions and provide guidance on selecting the perfect combination of components for your specific application.


Features & Benefits

Feature Customer Benefit
ATG, WiFi & TM Coax Cable Kits Custom lengths, as well as fully and partially terminated coaxial cable options, are available
AVANCE Trays Designed and qualified per AVANCE specifications
Ethernet, DataBus and USB Harness Kits Custom length and partially terminated harnesses

Trays

The trays are designed per the Avance system specifications; equipped with dual fans to properly cool the system, as well as a relay switch that activates the fan power when the LRU is installed. Additional custom options are available upon request.
Contact Amphenol CIT engineering to confirm the right tray for your application.

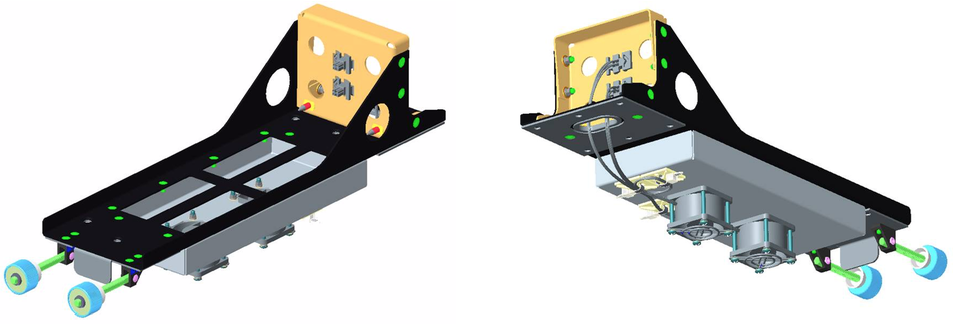

AVANCE™ L3 Tray

P/N: 200-104609-101

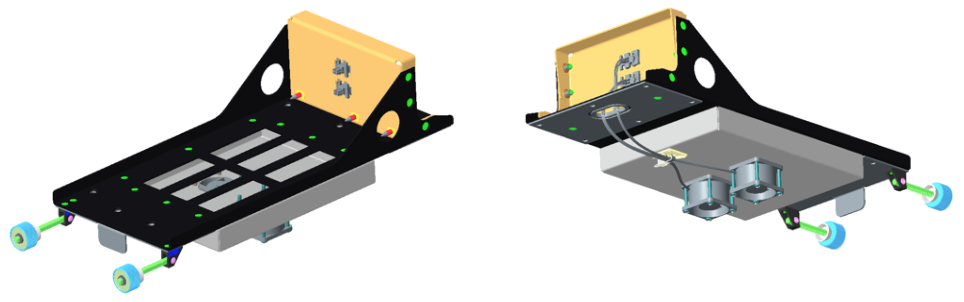

AVANCE™ L5/L5i Tray

P/N: 200-104624-101


L3/L5i ATG Kit

ATG coax cable kits are engineered to specify your required length and optimized for loss and attenuation dependent upon your installation length. Various cable types and connector variations (straight or right angle) are available to optimize your installation needs as both fully terminated and partially terminated options. The kits are designed for both Omni and Dual antenna configurations — just plug and play!

Example Configuration P/N: 500-104913-2001B/5405C

  • Fwd Cable Length (in) = 200
  • Fwd Cable Type = P/N: 311901 = 1
  • Fwd TNC Connector Configuration = Straight (V1, H1), Right Angle (J1, J2*) = B
  • Aft Cable Length (in) = 540
  • Aft Cable Type = P/N: 421201 = 5
  • Aft TNC Connector Configuration = Right Angle (V2, H2), Right Angle (J1, J2*) = C

*For Dual Antenna Directional configuration, J4 is used instead of J2

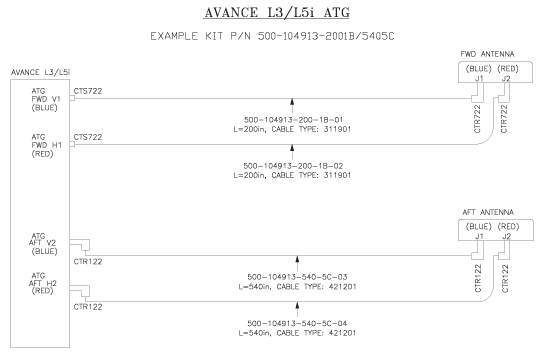

L3-L5i ATG Example Config

L5 ATG Kits

ATG coax cable kits are engineered to specify your required length and optimized for loss and attenuation dependent upon your installation length. Various cable types and connector variations (straight or right angle) are available to optimize your installation needs, as both fully terminated and partially terminated options. The kits are designed for both Omni and Dual antenna configurations — just plug and play!


Dual ATG/Directional Antenna

Example Configuration P/N: 500-104821-2001B/5405C

  • Fwd Cable Length (in) = 200
  • Fwd Cable Type = P/N: 311901 = 1
  • Fwd TNC Connector Configuration = Straight (H1, V1, H2, V2), Right Angle (J2, J1, J4, J3) = B
  • Aft Cable Length (in) = 540
  • Aft Cable Type = P/N: 421201 = 5
  • Aft TNC Connector Configuration = Right Angle (H3, V3, H4, V4), Right Angle (J2, J1, J4, J3) = C

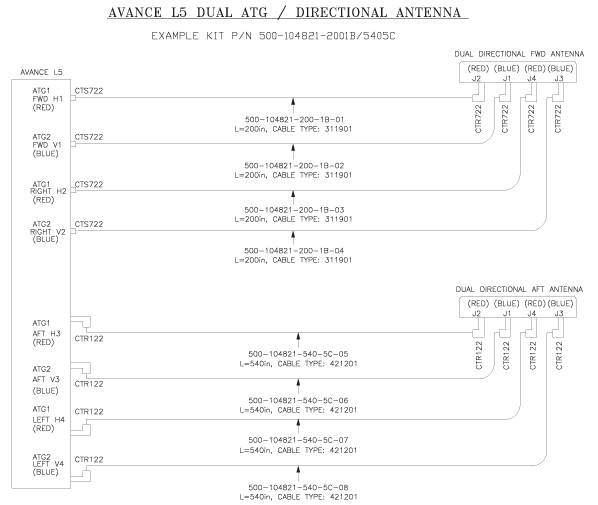

L5 Dual ATG-Directional Antenna Example Config


Dual ATG/Directional and Fractal Antenna

Example Configuration P/N: 500-104967-2001B/2401A/5405C/2201B

  • Fwd Cable Length (in) = 200
  • Fwd Cable Type = P/N: 311901 = 1
  • Fwd TNC Connector Configuration = Straight (H1, V1), Right Angle (J2, J1) = B
  • Right Cable Length (in) = 240
  • Right Cable Type = P/N: 311901 = 1
  • Right TNC Connector Configuration = Straight (H2, V2), Straight (J2, J1) = A
  • Aft Cable Length (in) = 540
  • Aft Cable Type = P/N: 421201 = 5
  • Aft TNC Connector Configuration = Right Angle (H3, V3), Right Angle (J2, J1) = C
  • Left Cable Length (in) = 220
  • Left Cable Type = P/N: 311901 = 1
  • Left TNC Connector Configuration = Straight (H4, V4), Right Angle (J2, J1) = B

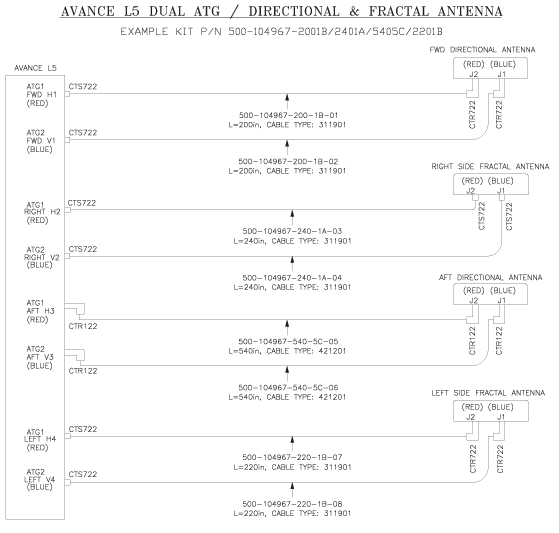

L5 Dual ATG-Directional & Fractal Antenna Example Config

WiFi & TM Kits

ATG coax cable kits are engineered to specify your required length and optimized for loss and attenuation dependent upon your installation length. Various cable types and connector variations (straight or right angle) are available to optimize your installation needs, as both fully terminated and partially terminated options. The kits are designed for both Omni and Dual antenna configurations — just plug and play!

Please refer to the configurator worksheet below and linked drawing to generate your cables based on how many TM & WiFi antennas are required. SMA coax connectors are automatically chosen based on cable type and connector configuration. Cables are ordered a la carte.

  • TM-1 ☐ 500-104669-XXX-XA-01
  • TM-2 ☐ 500-104669-XXX-XA-02
  • WiFi-1 ☐ 500-104669-XXX-XA-03
  • WiFi-2 ☐ 500-104669-XXX-XA-04
  • WiFi-3 ☐ 500-104669-XXX-XA-05
  • WiFi-4 ☐ 500-104669-XXX-XA-06
  • WiFi-5 ☐ 500-104669-XXX-XA-07
  • WiFi-6 ☐ 500-104669-XXX-XA-08

Example Configuration

  • TM-1 ☒ 500-104669-240-1A-01 — 240 inches, Straight/Straight, 311901
  • TM-2 ☐ N/A
  • WiFi-1 ☒ 500-104669-180-1A-03 — 180 inches, Straight/Straight, 311901
  • WiFi-2 ☒ 500-104669-240-2A-04 — 240 inches, Straight/Straight, 421601
  • WiFi-3 ☒ 500-104669-240-3A-05 — 240 inches, Straight/Straight, 311601
  • WiFi-4 ☐ N/A
  • WiFi-5 ☐ N/A
  • WiFi-6 ☐ N/A

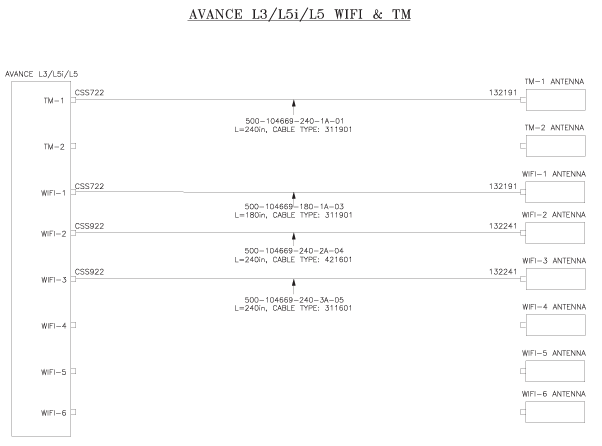

WiFi & TM Example Config

Connector Harness Kits

Connector harness kits are engineered to specify your desired lengths for each aircraft bus location and system specified in the installation manual.  Please refer to the following worksheets to build your P1, P2, & P3 harnesses.  All harnesses are terminated at the connector end and capped at the A/C end.   Ethernet, DataBus, USB, & Discrete wires specified in the installation manual are used to populate the connector harnesses.  The harnesses also include the mating backshells for P1, P2, & P3.  Additional bulk wire & cable can be purchased separate from the harnesses to accommodate additional ethernet and databus connections needed to complete your installation.

P1 Harness

Example Configuration P/N: 600-105011-120/024/020/018

  • Length to 28 VDC Power Source = 120 in
  • Length to Ground #1 = 24 in
  • Length to Ground #2 = 20 in
  • Length to Ground #3 = 18 in
  • M22759/16-16-9 (Qty 4)
  • P1 Connector = MS27467T13F4S or E
  • P1 Connector Backshell = M85049/49-2-12N

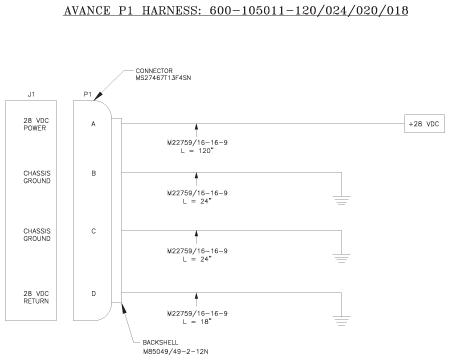

P1 Harness Example Config


P2 Harness

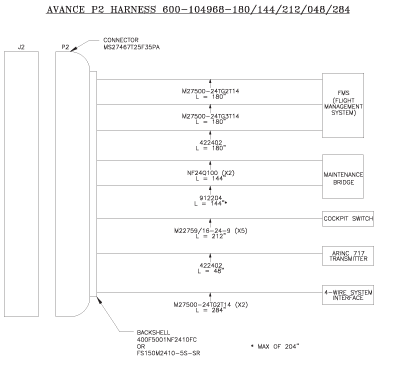

Example Configuration P/N: 600-104968-180/144/212/048/284

  • Length to FMS = 180 in
    » M27500-24TG2T14
    » M27500-24TG3T14
    » 422402
  • Length to Maintenance Bridge = 144 in
    » 912204*
    » NF24Q100 (Qty 2)
  • Length to Cockpit Switch = 212 in
    » M22759/16-24-9 (Qty 5)
  • Length to A717 Transmitter= 048 in
    » 422404
  • Length to 4-Wire System Interface = 284 in
    » M27500-24TG2T14 (Qty 2)
  • P2 Connector = MS27467T25F35PA
  • P2 Connector Backshell = 400FS001M2410F2 or FS150M2410-5S-SR

*Max Length of 204 inP2 Harness Example Config


P3 Harness

Example Configuration P/N: 600-105012-132/064/168/302/288/048

  • Length to CMS = 132 in
    » 962408
  • Length to ACM = 64 in
    » NF24Q100
  • Length to SBB = 168 in
    » NF24Q100
  • Length to ST4300 = 302 in
    » NF24Q100
  • Length to GVPU = 288 in
    » NF24Q100
  • Length to GGIP = 048 in
    » NF24Q100
  • P3 Connector = MS27467T25F35PN
  • P3 Connector Backshell = 400FS001M2410F2 or FS150M2410-5S-SR

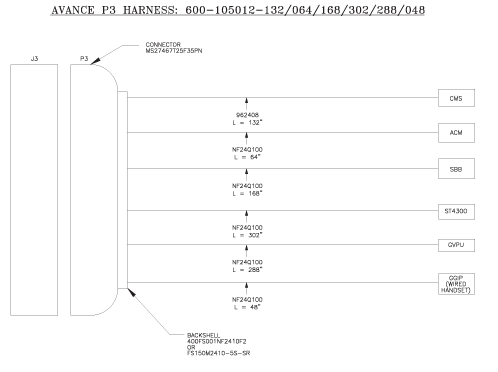

*Max Length of 204 inP3 Harness Example Config

Product Information Resources

Gogo AVANCE sheet

AVANCE™ L3 Tray drawing
Drawing 900-104961

AVANCE™ L5/L5i Tray drawing
Drawing 900-104969

L3/L5i ATG Coax Kit Product Information
Drawing 500-104913
L3/L5i ATG Configurator Worksheet

Dual ATG/Directional Antenna
Drawing 500-104821
L5 Dual ATG/Directional Antenna Configurator Worksheet

Dual ATG/Directional and Fractal Antenna
Drawing 500-104669
WiFi & TM Configurator Worksheet

P1 Harness
Drawing 600-105011
P1 Harness Configurator Worksheet

P2 Harness
Drawing 600-104968
P2 Harness Configurator Worksheet

P3 Harness
Drawing 600-105012
P3 Harness Configurator Worksheet


More Information
