Sensor modules for pneumatic detection of cooling system failures are a low cost monitoring solution for your stand alone cooling system and can be interfaced into any low pressure plenum application.

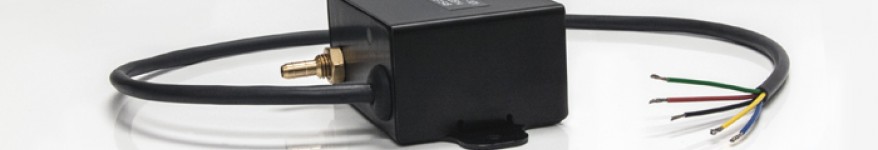

Need a cost effective solution to monitor cooling air for your equipment? Amphenol CIT has developed an easy to integrate module that incorporates a high sensitivity pneumatic sensor and aircraft grade relay into a single package. This provides a clear signal if the cooling system fails completely or becomes substantially degraded by fan bearing wear or obstructions. Vacuum or over pressure versions with AC or DC relays are available to allow flexibility for your specific application. The pneumatic low pressure flow sensors are ideally used in MRO and VIP installations.
Features
Negative (vacuum) and Positive (over pressure) versions available
Operation on 115V 400Hz AC or 28V DC aircraft power available
Simple lead wire hookup
Normally open and Normally closed relay contacts for signaling
Barb fitting to allow pneumatic line to run away from sensor for convenient placement
Technical Specifications
Power: 115V 400Hz AC or 28 VDC Options
Sensitivity: Pressures as low as 0.1 inches H2O
RTCA/DO-160D Environmental Conditions
Temperature and Altitude Cat A2
Temperature Variation Cat B
Humidity Cat A
Operational Shocks and Crash Safety Cat B
Vibration Cat S Curve B2
Waterproofness Cat W
Fungus Resistance Cat F
Power Input Cat E & B
Voltage Spike Cat B
Audio Frequency Conducted Susceptibility – Power Inputs Cat E & B
Induced Signal Susceptibility Cat C
