Amphenol CIT USB 2.0 & 3.0 Cables provide light-weight, small diameter solutions for Aerospace USB connections. Popular configurations are shown below and many other options are available. In addition to the standard configurations, when a custom solution is required, Amphenol CIT has experienced on-site engineering to design a cable to meet your needs.

With over twenty years of experience building USB cables, Amphenol CIT has proven solutions for the most demanding applications. Amphenol CIT USB cables are part of our Maxflite™ series. Look to Amphenol CIT to also meet the needs of other popular video and data bus protocols including HDMI, DVI, Firewire and CAN bus.


Features & Benefits

Features Benefits
26, 24 AWG USB 2.0 & 3.0 Multiple configurations tailored to particular need of user of any application
USB 2.0: 40 Mbit/S
USB 3.0: 5 Gbit/S
Meets aerospace speed performance requirements
As low as 19 lbs per thousand feet Lightweight solution, minimizing space within aircraft
Two versions of Aerospace Grade USB 3.0 Cable;
fulfills the requirements of the USB 3.0 specification
Meets USB 3.0 requirements to 3m.
Options with or without drain wires
Small diameter and flexible Minimizes space within aircraft and maneuver cable with minimal risk

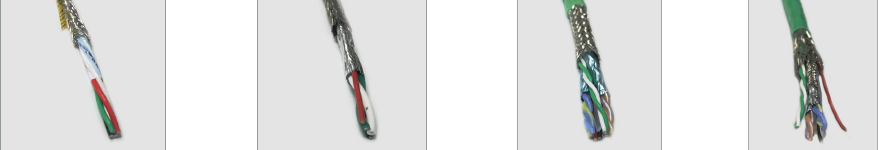

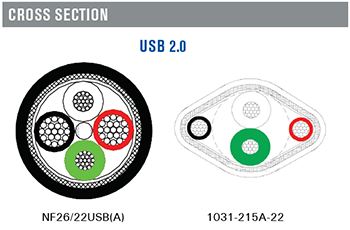

USB 2.0

USB 2.0 (26/22 AWG) USB 2.0 (24 AWG)
Part Number NF26/22USB(A) 1031-215A-22
Impedance (ohms) 90 90
Velocity of Propagation 70% 70%
Attenuation 100 MHz 2.0 dB/5m 1.4 dB/5m
200 MHz 3.2 dB/5m 1.9 dB/5m
400 MHz 5.8 dB/5m 2.7 dB/5m
Cable Weight: lbs/1000 ft (Kg/1000m) 19.0
(28.3)
29.0
(43.2)
Cable Diameter: in. (mm) 0.13
(3.38)
0.2
(5.1)
Min. Bend Radius: in. (mm) 1.3
(33.0)
2.0
(50.8)
Operating Temperature -55-150 °C -55-150 °C
Other Meets FAR 25.853 and Boeing/Airbus Smoke and Toxicity Meets FAR 25.853 and Boeing/Airbus Smoke and Toxicity

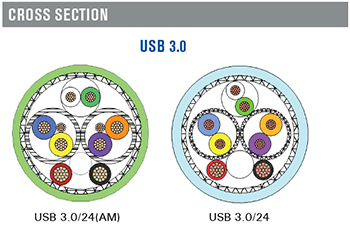

USB 3.0

USB 3.0 (24/26/22 AWG + drain) USB 3.0 (24/26/22 AWG)
Part Number USB3.0/24(AM) USB 3.0/24
Impedance (ohms) 90 90
Velocity of Propagation 70% 70%
Attenuation 0.62 GHz 2.4 dB/3m 2.4 dB/3m
1.25 GHz 3.6 dB/3m 3.6 dB/3m
2.50 GHz 5.1 dB/3m 5.1 dB/3m
5.00 GHz 8.4 dB/3m 8.4 dB/3m
7.50GHz 11.4 dB/3m 11.4 dB/3m
Cable Weight: lbs/1000 ft (Kg/1000m) 60.0
(89.3)
61.2
(91.1)
Cable Diameter: in.
(mm)
0.27
(6.9)
0.27
(6.9)
Min. Bend Radius: in.
(mm)
2.7
(68.6)
2.7
(68.6)
Operating Temperature -55-150 °C -55-150 °C
Other Meets FAR 25.853 and Boeing/Airbus Smoke and Toxicity Meets FAR 25.853 and Boeing/Airbus Smoke and Toxicity
