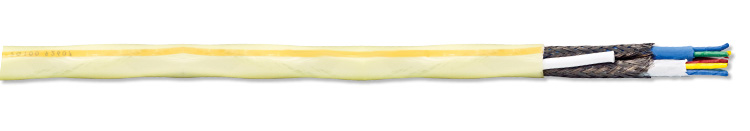

Gigabit-Shielded Dual Quads

Designed to support a complete range of Ethernet applications, these Gigabit Ethernet cables are comprised of a shielded dual quad design configuration to achieve the necessary performance for any given application.

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.

Key Features

Reliable 1000 Base-T performance
Flight-proven designs
Low smoke and flame generation
Custom designs available

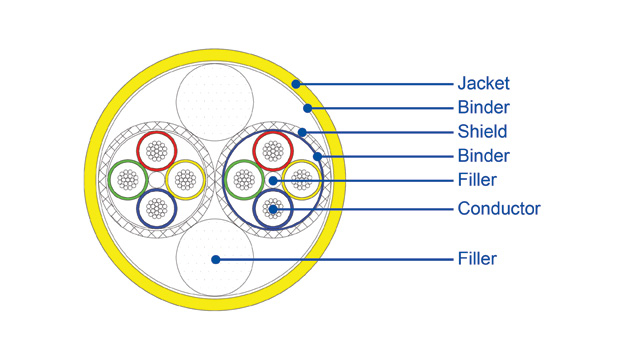

Product Construction

Gigabit Shielded Dual Quad

Performance Data
PNs Available Through Amphenol CIT Direct

Gigabit Shielded Dual Quads		NF24-2Q100	NF26-2Q100
Impedance		100 Ω	100 Ω
Velocity of Propagation		79%	79%
Attenuation @ 100 m	@ 100 MHz	26 dB	30.5 dB
	@ 250 MHz	N/A	N/A
	@ 500 MHz	N/A	N/A
Weight lb/1000 ft (kg/1000 m)		58 (86)	45 (67)
Size in (mm)		0.305 (7.747)	0.265 (6.731)
AWG		24	26
Min. Bend Radius in (mm)		1.83 (46.482)	1.59 (40.386)
Operating Temp**		-55 to 150 °C	-55 to 150 °C
RoHS Compliant		✓	✓
Meets FAR 25.853 Flammability Requirements		✓	✓
Meets Boeing/ Airbus Smoke & Toxicity Requirements		✓	✓

**Available at -65 ºC. Contact us for details.

NF24-2Q100

Check Inventory

More Information
