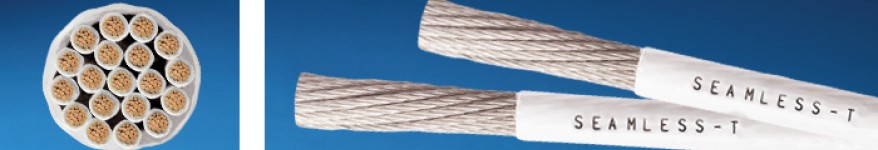

Seamless-T™ M22759/180-/192 (SAE AS22759/180-/192) Wire


Amphenol CIT's Seamless-T product line meets the enhanced "seamless" insulation and enhanced requirements of AS22759/180-/192, once again raising the bar for outstanding performance.


Key Features

  • Weight and space savings over extruded insulation
  • Improved resistance to scrape abrasion
  • Further improved laser markability
  • Unmatched hydrolytic and electrical arc track resistance
  • Exceptional layer-to-layer adhesion
  • Low outgassing characteristics

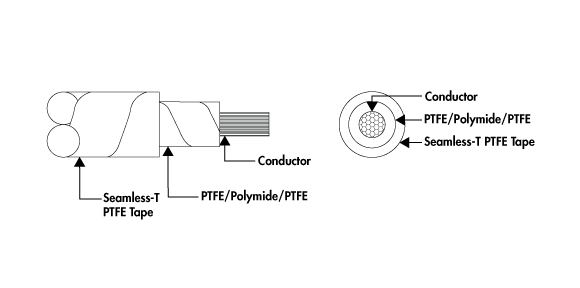

Product Construction

Conductor Stranded nickel
Insulations and jacket PTFE/polyimide/PTFE and Seamless T PTFE tape

Mechanical/Environmental Performance

Electrical Performance:
Voltage 600 V
DC Resistance 1.26 to 41.3 ohms per 1000 ft
Vp NA
Attenuation NA
Mechanical Specifications:
Weight/K ft 1.3 to 30.4 lbs per 1000 ft
Size 0.034 in to 0.123 in
Min. Bend Radius NA
Environmental Performance:
Operating Temperature -55 to 150C (Tin)
-55 to 200 C (Silver)
-55 to 260 C (Nickel)

Product Information Resources

Seamless-T™ M22759 detailed product information


Product Categories

Wire & Cable

Product Markets

Commercial Aerospace
Military-Defense
