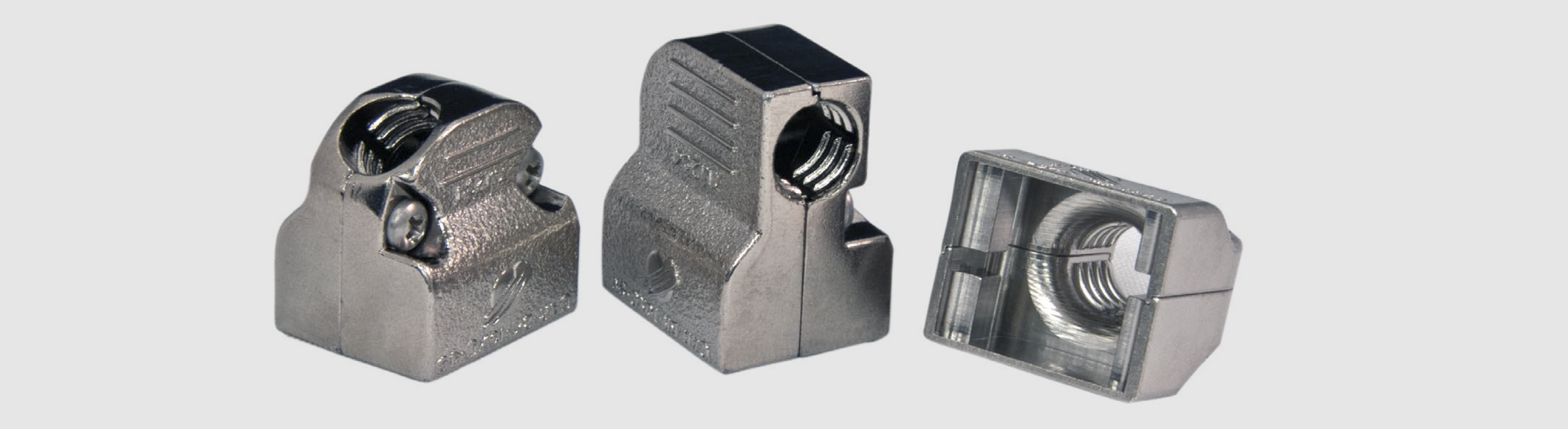

Mono Modular Backshells


Our lightweight Mono Modular Backshells are designed to minimize weight and maximize internal space and Electromagnetic Interference (EMI) shielding. They are an ideal solution for high-end commercial and aviation cables where weight and/or EMI shielding are critical. These lightweight backshells also have several unique features that improve the ease of assembly and overall system stability.

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.


Key Characteristics

  • Compatible with EN4165/BACC65/ARINC 809 connectors
  • Compression-style shielding method
  • Field repairable
  • High precision with minimal air gap
  • Very effective EMI shielding
  • RoHS compliant
  • Straight, 45º, and 90º cable exits

Ideal Applications

  • Aerospace, video and Ethernet
  • EMI protection
  • Weight sensitive

Kit Contents

  • 2 shell halves
  • 2 screws

Standard Material & Finish

  • Shell: Aluminum alloy with electroless nickel plating
  • Plating: Electroless nickel

Optional Material & Finish

  • Zinc alloy
  • Additional plating

CAR-BK-10XC-45Check Inventory
CAR-BK-10XC-90Check Inventory
CAR-BK-10XC-SCheck Inventory
CAR-BK-10XP-45Check Inventory
CAR-BK-10XP-SCheck Inventory
CAR-BK-13XC-SCheck Inventory
CAR-BK-15MD-60Check Inventory

P/N Exit Angle Accommodated Cable Entry Diameter Screw P/N Screw Quantity Width Height Weight Shell
CAR-BK-10XP-S Straight 0.15"-0.40" (10mm) MS51959-5 2 1.000" 0.955" 9.5 g Composite
CAR-BK-10XP-45 45° 0.15"-0.40" (10mm) MS51957-14 2 1.000" 1.000" 9.5 g Composite
CAR-BK-10XC-S Straight 0.15"-0.40" (10mm) MS51957-14 2 1.000" 0.995" 13.0 g Aluminum Alloy
CAR-BK-10XC-45 45° 0.15"-0.40" (10mm) MS51957-14 2 1.000" 1.000" 13.0 g Aluminum Alloy
CAR-BK-10XC-90 90° 0.15"-0.40" (10mm) MS51957-14 2 1.000" 1.200" 15.0 g Aluminum Alloy
CAR-BK-13XC-S Straight 0.25"-0.50" (13mm) MS51957-5 2 1.000" 0.994" 12.5 g Aluminum Alloy
CAR-BK-13XP-S-E Straight 0.25"-0.50" (13mm) MS24693-C7 2 1.000" 1.450" 12.25 g Composite
