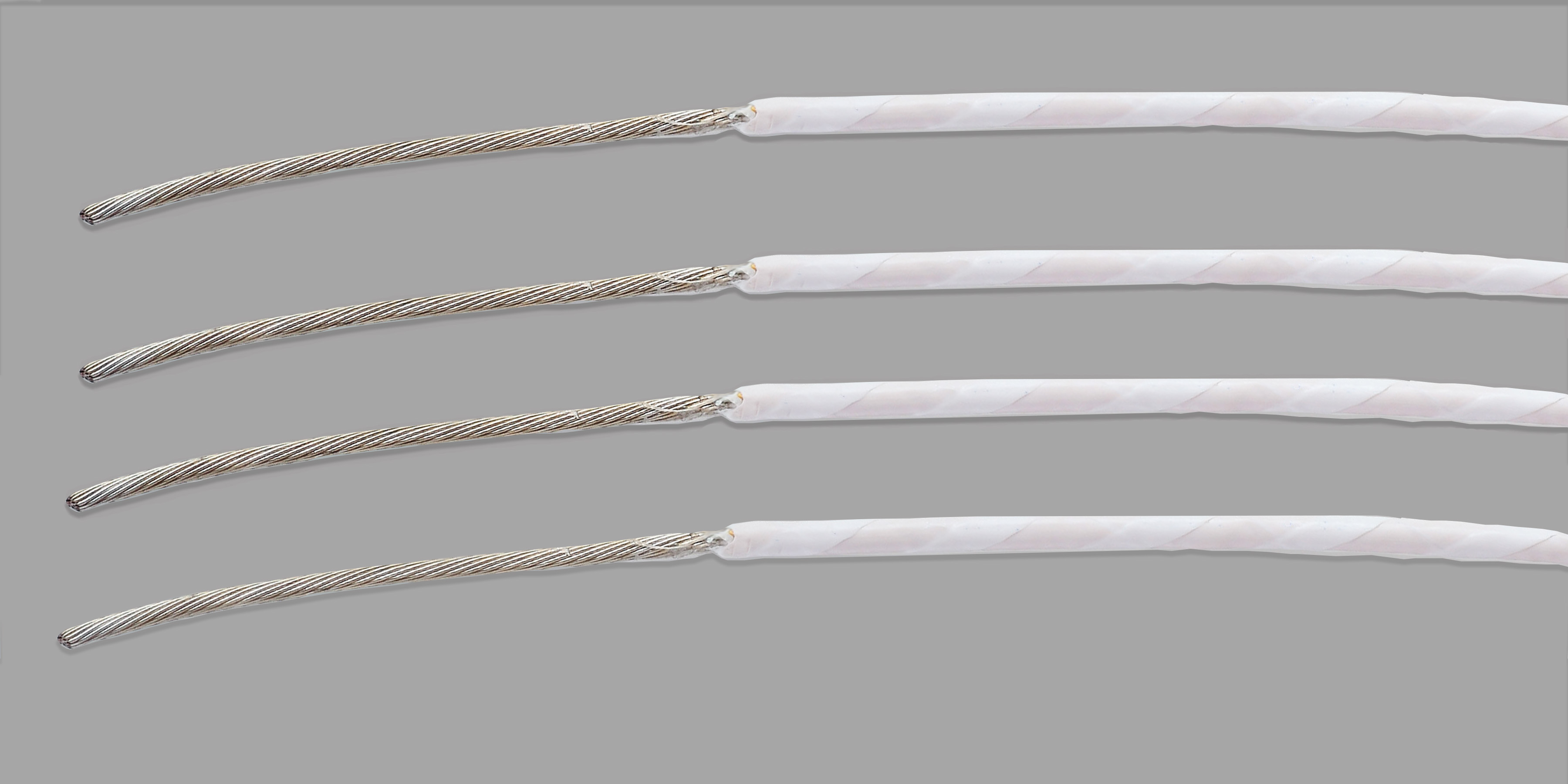

These wires are designed for critical circuit applications where wires must operate in extremely harsh environments, under vibration, and with direct flame exposure.


Key Features

  • Firezone wires for aircraft engine applications are designed to operate continuously at 260 °C
  • Firezone applications are designed to operate for a minimum of 15 minutes at up to 2000 °F (1093 °C), including in a direct flame
  • Firezone qualification must pass BSS 7324 and M25038 Shake and Bake Test

Shake and Bake Test Description:

  • Wire must withstand a flame temperature of 2,000° ± 50°F for 15 minutes
  • After the flame has been stabilized, the wire is vibrated 30 times per second, with the rack having a maximum total excursion (overall movement) of approximately .06 inches (1.52 mm)
  • After 15 minutes, the lowest insulation resistance is measured
  • No insulation can flake or fall off during the flame exposure

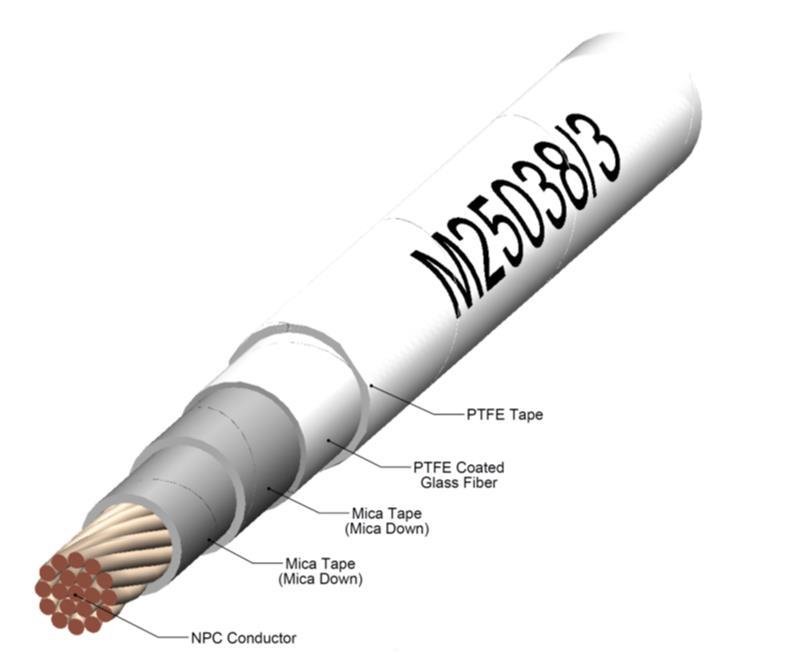

M25038 Construction Drawing

Firezone Requirements v. Results

Requirements Results
MIL-W-25038 50 Ω 10 kΩ

Product Construction

MIL-W-25038/1 Construction Details
Jacket PTFE-coated fiberglass braid and finisher
Insulation Composite inorganic dielectric
Conductor 27% nickel-coated copper ranging from 22 - 4/0 AWG



MIL-W-25038/3 Construction Details
Jacket Fused high-performance PTFE tape (also available with Seamless Wrap PTFE tape)
Insulation
Thermazone IIIK Outer: PTFE/polyimide tape fluid barrier

Inner: Inorganic dielectric

Thermazone IIIG Outer: PTFE-coated fiberglass fluid barrier

Inner: Inorganic dielectric

Conductor 12-18 AWG: 27% nickel-coated copper

20-22 AWG: 27% nickel-coated high-strength copper alloy

Mechanical Environmental Performance

Voltage Rating 600 V
Temperature Rating -55 to 260 °C
AWG 22-12

Product Information Resources

MIL-W-25038/1 & MIL-W-25038/3 datasheet (Thermax)

Thermazone™ Cables datasheet


Product Categories

Wire & Cable

Product Markets

Commercial Aerospace
Industrial
Military-Defense

More Information

To inquire about MIL-W-25038 Wire available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.
