Mil-Spec M22759 wire is designed for severe environment aerospace applications, such as engine controls and SWAMP (Severe Weather and Moisture Prone) areas.

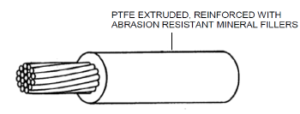

Mineral-filled PTFE insulation - medium wall.
AS22759/5 and /6 wires have mineral-filled PTFE insulation for high-temperature applications such as aircraft engines, SWAMP zones, and other applications where increased abrasion resistance is required.
For reduced-weight versions of these wires, see AS22759/7 and /8.
See M27500 shield and jackets cable incorporating these wires.
| Insulation | Extruded PTFE with abrasion-resistant mineral fillers. |
|---|---|
| Conductor | /5: Silver-plated copper /6: Nickel-plated copper |
| Colors | White preferred. All 10 basic colors and stripes available to MIL-STD-104. |
| Identification | to AS22759 |
| Performance Voltage Rating |
to 600V |
| Temperature Rating |
/5: -55 to 200°C /5: -55 to 260°C |
Products Manufactured to this specification are ROHS COMPLIANT.
| M22759 P/N | AWG Size | Stranding | Conductor Diameter | Insulation Diameter | Maximum Weight | Maximum Resistance | Thermax P/N | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | |||||||||
| M22759/5-10-* | 10 | 37/26 | 0.109 (2.77) | 0.172 (4.37) | 0.186 (4.72) | 48.0 | (71.4) | 1.19 | (3.90) | 10-AF3XT-3726 |
| M22759/5-12-* | 12 | 19/25 | 0.086 (2.18) | 0.153 (3.89) | 0.167 (4.24) | 34.5 | (51.3) | 1.81 | (5.94) | 12-AF3XT-1925 |
| M22759/5-14-* | 14 | 19/27 | 0.068 (1.74) | 0.136 (3.45) | 0.150 (3.81) | 25.0 | (37.2) | 2.88 | (9.45) | 14-AF3XT-1927 |
| M22759/5-16-* | 16 | 19/29 | 0.054 (1.38) | 0.120 (3.05) | 0.130 (3.30) | 18.0 | (26.8) | 4.52 | (14.8) | 16-AF3XT-1929 |
| M22759/5-18-* | 18 | 19/30 | 0.048 (1.22) | 0.105 (2.67) | 0.115 (2.92) | 14.0 | (20.8) | 5.79 | (19.0) | 18-AF3XT-1930 |
| M22759/5-20-* | 20 | 19/32 | 0.038 (0.98) | 0.090 (2.29) | 0.100 (2.54) | 10.0 | (14.9) | 9.19 | (30.1) | 20-AF3XT-1932 |
| M22759/5-22-* | 22 | 19/34 | 0.030 (0.77) | 0.080 (2.03) | 0.090 (2.29) | 8.0 | (12.0) | 15.1 | (49.5) | 22-AF3XT-1934 |
| M22759/5-24-* | 24 | 19/36 | 0.024 (0.61) | 0.070 (1.78) | 0.080 (2.03) | 6.0 | (9.0) | 24.3 | (79.7) | 24-AF3XT-1936 |
Dimensions in inches (mm). Weights in pounds/1000 feet (Kg/1,000 M). Resistance in Ω/1,000 feet (Ω/Km), @20° C.
All values are nominal unless otherwise indicated.
* Add color coding per MIL-STD-104.
| M22759 P/N | AWG Size | Stranding | Conductor Diameter | Insulation Diameter | Maximum Weight | Maximum Resistance | Thermax P/N | |||
|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | |||||||||
| M22759/6-10-* | 10 | 37/26 | 0.110 (2.79) | 0.172 (4.37) | 0.186 (4.72) | 48.0 | (71.4) | 1.24 | (4.07) | 10-AF3XTN-3726 |
| M22759/6-12-* | 12 | 19/25 | 0.087 (2.21) | 0.153 (3.89) | 0.167 (4.24) | 34.5 | (51.3) | 1.89 | (6.20) | 12-AF3XTN-1925 |
| M22759/6-14-* | 14 | 19/27 | 0.069 (1.75) | 0.136 (3.45) | 0.150 (3.81) | 25.0 | (37.2) | 3.00 | (9.84) | 14-AF3XTN-1927 |
| M22759/6-16-* | 16 | 19/29 | 0.055 (1.40) | 0.120 (3.05) | 0.130 (3.30) | 18.0 | (26.8) | 4.76 | (15.6) | 16-AF3XTN-1929 |
| M22759/6-18-* | 18 | 19/30 | 0.048 (1.23) | 0.105 (2.67) | 0.115 (2.92) | 14.0 | (20.8) | 6.10 | (20.0) | 18-AF3XTN-1930 |
| M22759/6-20-* | 20 | 19/32 | 0.039 (0.99) | 0.090 (2.29) | 0.100 (2.54) | 10.0 | (14.9) | 9.77 | (32.1) | 20-AF3XTN-1932 |
| M22759/6-22-* | 22 | 19/34 | 0.031 (0.79) | 0.080 (2.03) | 0.090 (2.29) | 8.0 | (12.0) | 16.0 | (52.5) | 22-AF3XTN-1934 |
| M22759/6-24-* | 24 | 19/36 | 0.024 (0.62) | 0.070 (1.78) | 0.080 (2.03) | 6.0 | (9.0) | 25.9 | (85.0) | 24-AF3XTN-1936 |
Dimensions in inches (mm). Weights in pounds/1000 feet (Kg/1,000 M). Resistance in Ω/1,000 feet (Ω/Km), @20° C.
All values are nominal unless otherwise indicated.
* Add color coding per MIL-STD-104.
Mineral-filled PTFE insulation - medium wall.
AS22759/7 and /8 wires have reduced weight, mineral-filled PTFE insulation for high-temperature applications such as aircraft engines, SWAMP zones, and other applications where increased abrasion resistance is required.
These wires are reduced-weight versions of AS22759/5 and /6.
See M27500 shield and jackets cable incorporating these wires.
| Insulation | Extruded PTFE with abrasion-resistant mineral fillers. |
|---|---|
| Conductor | /7: Silver-plated copper. /8: Nickel-plated copper. |
| Colors | White preferred. All 10 basic colors and stripes available to MIL-STD-104. |
| Identification | to AS22759 |
| Performance Voltage Rating |
to 600V |
| Temperature Rating |
/7: -55 to 200°C /8: -55 to 260°C |
Products Manufactured to this specification are ROHS COMPLIANT.
| M22759 P/N | AWG Size | Stranding | Conductor Diameter | Insulation Diameter | Maximum Weight | Maximum Resistance | Thermax P/N |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | |||||||||
| M22759/7-8-* | 8 | 133/29 | 0.164 (4.15) | 0.215 (5.46) | 0.225 (5.72) | 76.8 | (114) | 0.658 | (2.16) | 8-AF2XT-13329 |
| M22759/7-10-* | 10 | 37/26 | 0.109 (2.77) | 0.154 (3.91) | 0.162 (4.11) | 41.8 | (62.2) | 1.19 | (3.90) | 10-AF2XT-3726 |
| M22759/7-12-* | 12 | 19/25 | 0.086 (2.18) | 0.131 (3.33) | 0.137 (3.48) | 28.5 | (42.4) | 1.81 | (5.94) | 12-AF2XT-1925 |
| M22759/7-14-* | 14 | 19/27 | 0.068 (1.74) | 0.112 (2.84) | 0.118 (3.00) | 18.6 | (27.7) | 2.88 | (9.45) | 14-AF2XT-1927 |
| M22759/7-16-* | 16 | 19/29 | 0.054 (1.38) | 0.099 (2.51) | 0.105 (2.67) | 13.8 | (20.5) | 4.52 | (14.8) | 16-AF2XT-1929 |
| M22759/7-18-* | 18 | 19/30 | 0.048 (1.22) | 0.090 (2.29) | 0.094 (2.39) | 11.0 | (16.4) | 5.79 | (19.0) | 18-AF2XT-1930 |
| M22759/7-20-* | 20 | 19/32 | 0.038 (0.98) | 0.080 (2.03) | 0.084 (2.13) | 8.1 | (12.1) | 9.19 | (30.1) | 20-AF2XT-1932 |
| M22759/7-22-* | 22 | 19/34 | 0.030 (0.77) | 0.071 (1.80) | 0.075 (1.91) | 6.0 | (8.93) | 15.1 | (49.5) | 22-AF2XT-1934 |
| M22759/7-24-* | 24 | 19/36 | 0.024 (0.61) | 0.060 (1.52) | 0.064 (1.63) | 4.3 | (6.40) | 24.3 | (79.7) | 24-AF2XT-1936 |
Dimensions in inches (mm). Weights in pounds/1000 feet (Kg/1,000 M). Resistance in Ω/1,000 feet (Ω/Km), @20° C.
All values are nominal unless otherwise indicated.
* Add color coding per MIL-STD-104.
M22759/8-10-*1037/260.110 (2.79)0.154 (3.91)0.162 (4.11)41.8(62.2)1.24(4.07)10-AF2XTN-3726
| M22759 P/N | AWG Size | Stranding | Conductor Diameter | Insulation Diameter | Maximum Weight | Maximum Resistance | Thermax P/N |
|||
|---|---|---|---|---|---|---|---|---|---|---|
| Min | Max | |||||||||
| M22759/8-12-* | 12 | 19/25 | 0.087 (2.21) | 0.131 (3.33) | 0.137 (3.48) | 28.5 | (42.4) | 1.89 | (6.20) | 12-AF2XTN-1925 |
| M22759/8-14-* | 14 | 19/27 | 0.069 (1.75) | 0.112 (2.84) | 0.118 (3.00) | 18.6 | (27.7) | 3.00 | (9.84) | 14-AF2XTN-1927 |
| M22759/8-16-* | 16 | 19/29 | 0.055 (1.40) | 0.099 (2.51) | 0.105 (2.67) | 13.8 | (20.5) | 4.76 | (15.6) | 16-AF2XTN-1929 |
| M22759/8-18-* | 18 | 19/30 | 0.048 (1.23) | 0.090 (2.29) | 0.094 (2.39) | 11.0 | (16.4) | 6.10 | (20.0) | 18-AF2XTN-1930 |
| M22759/8-20-* | 20 | 19/32 | 0.039 (0.99) | 0.080 (2.03) | 0.084 (2.13) | 8.1 | (12.1) | 9.77 | (32.1) | 20-AF2XTN-1932 |
| M22759/8-22-* | 22 | 19/34 | 0.031 (0.79) | 0.071 (1.80) | 0.075 (1.91) | 6.0 | (8.93) | 16.0 | (52.5) | 22-AF2XTN-1934 |
| M22759/8-24-* | 24 | 19/36 | 0.024 (0.62) | 0.060 (1.52) | 0.064 (1.63) | 4.3 | (6.40) | 25.9 | (85.0) | 24-AF2XTN-1936 |
Dimensions in inches (mm). Weights in pounds/1000 feet (Kg/1,000 M). Resistance in Ω/1,000 feet (Ω/Km), @20° C.
All values are nominal unless otherwise indicated.
* Add color coding per MIL-STD-104.
