IEEE 1394 Firewire

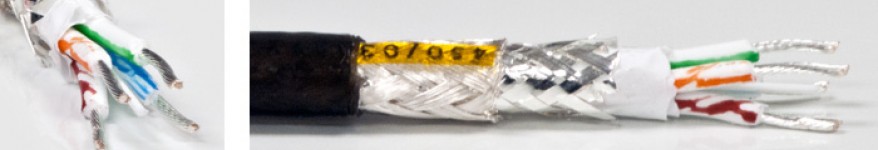

Two images showing a partially stripped IEEE Firewire cable, revealing the shielded cables and insulation layers

Our cabling solutions for the IEEE 1394 standard are comprised of individually shielded pairs or Quad configurations that utilize our expanded PTFE technology


Key Features

  • IEEE 1394 is an industry standard for a high-speed, scalable, flexible, easy to use digital interface
  • Small size
  • Flexible
  • Easy to use

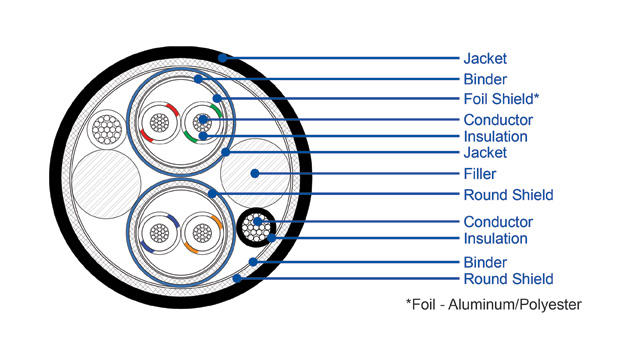

Product Construction

Firewire Cable

Specifications

P/N 24483/03063LX-6(LD)
Typical Protocol IEEE 1394a
AWG Size (19 Strand) 24/22
Conductor Material SCCA/SCC
Conductor Diameter (in.) 0.0233/0.0295
Insulation Material PTFE
Insulation Diameter (in.) 0.065/0.0415
Pair #1 White/RedWhite/Green
Pair #2 White/OrangeWhite/Blue
Power White/Black

Mechanical/Environmental Performance

P/N 24483/03063LX-6(LD)
Typical Protocol IEEE 1394a
Cable Diameter (in.) 0.34
Cable Weight (lbs/1000ft) 78
Impedance (Ohms) 110 ± 6
Capacitance (pF/ft) 12
Velocity of Propagation 79%
Attenuation (dB/100ft) 11 @ 200 MHz
17 @ 400 MHz
24 @ 800 MHz

Product Information Resources

High-Speed Digital Data Cables datasheet
