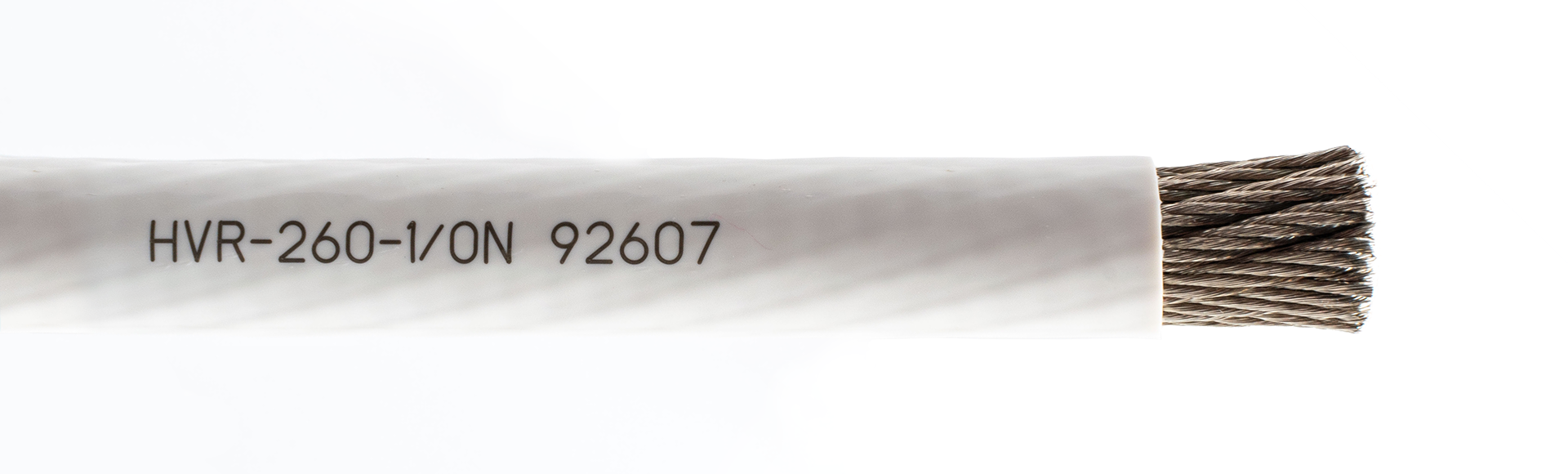

High-Voltage Extruded Wire


Part of our high-voltage series, our high-voltage extruded wires are capable of 1,000-volt performance while maintaining excellent flammability and arc-propagation resistance. They are ideal for applications, such as aerospace, that require a cable with excellent safety factors as well as user-friendly features like:

  • Easy markability
  • Tight bend radius

Features & Benefits

Features Benefits
High-voltage performance of 1000 V • Corona resistant
Minimum bend radius of 6x • Tight routing bends without insulation wrinkling or cracking
Temperature rating of 260 °C • High temperature rating for aerospace and industrial applications
UV laser marking • Easily identify wire for customer and end users
Excellent flammability and smoke generation properties • Meets EN3475-407
Exceptional arc-propagation resistance • Key safety factor for customer and end users
High-strand-count conductor • Extremely flexible for installation and routing purposes

Connectors for Shielded & Unshielded Cable Applications

Whether for an air taxi operating at 1,000 VAC and 1,500 VDC at 15,000 ft., or a military aircraft operating at 3,600 VAC and 5,100 VDC at 55,000 ft., we have the expertise to engineer and produce the right connector for your shielded and unshielded cable applications. Contact us for details.

Product Information Resources

High-Voltage Extruded Wire datasheet
