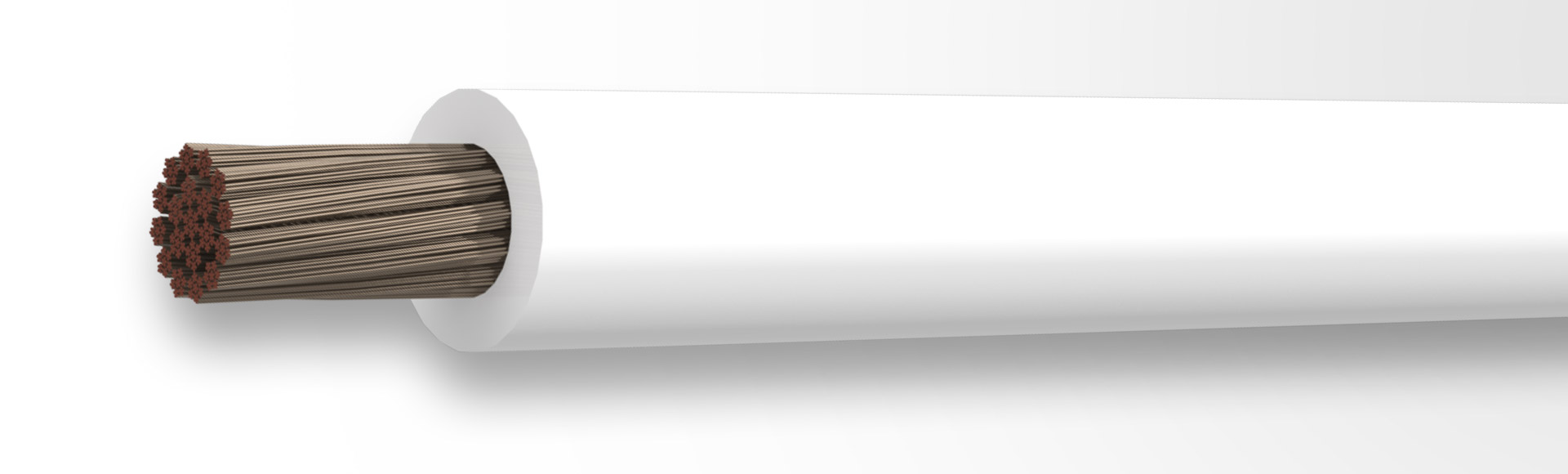

High-Voltage Composite Wire


Our 1,000-volt composite wires offer lighter weight and smaller diameters compared to similar extruded constructions in applications up to 260 °C. Our high-voltage composite wire and cable family offers exceptional installation characteristics like:

  • Seamless™ Wrap PTFE jacket technology which offers all the advantages of a tape wrap, with a smooth outer surface that improves installation characteristics
  • A high-strand-count, nickel-plated copper conductor that offers enhanced flexibility and routing capabilities

Features & Benefits

Features Benefits
High-voltage performance of 1,000 V • Corona resistant
Minimum bend radius of 6x • Allows routing around tight bends and in restricted areas
UV laser marking • Easily identify wire for customer and end-users
Seamlesss™ tape-wrapped composite construction • Light weight, small diameter

• Installed like an extruded wire

Exceptional arc-propagation resistance • Key safety factor for customer and end users
High strand count conductor • Extremely flexible for installation and routing purposes



Connectors for Shielded & Unshielded Cable Applications

Whether for an air taxi operating at 1,000 VAC and 1,500 VDC at 15,000 ft., or a military aircraft operating at 3,600 VAC and 5,100 VDC at 55,000 ft., we have the expertise to engineer and produce the right connector for your shielded and unshielded cable applications. Contact us for details.

Product Information Resources

High-Voltage Composite Wire datasheet


Product Categories

Wire & Cable

Product Markets

Commercial Aerospace
Military-Defense

More Information

To inquire about High-Voltage Composite Wire available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.
