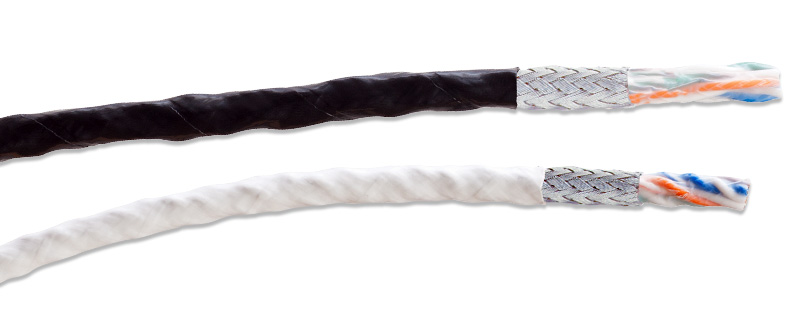

Gigabit-Flexx™ Ethernet Cables


Gigabit-Flexx™ Ethernet cables combine exceptional 1000 Base-T performance with a bend radius of 0.75 in. (19.00 mm) which makes them extremely flexible and easy to route in tight spaces.

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.


Key Features

  • Reliable 1000 Base-T performance up to 100 MHz at distances of up to 80m
  • Bend radius of 0.75in (19.0mm), making them extremely flexible and easy to route in tight spaces
  • More durable, smaller in overall size and lighter in weight than comparable cables
  • Applications include in-flight entertainments systems, cabin management systems and ground vehicle bus
  • Meet the flammability requirements of FAR 25.853 and the smoke and toxicity requirements of Boeing and Airbus ABD0031

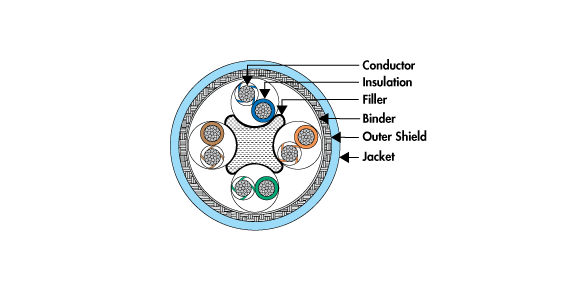

Gigabit Flexx Ethernet Cable Cutaway


Gigabit-Flexx™MX10G-24FLXMX10G-26FLX
Impedance100 Ω100 Ω
DC Resistance @ 100 ft2.76 Ω4.38 Ω
Velocity of Propagation70%70%
Attenuation @ 100 m@ 100 MHz26.4 dB31.6 dB
@ 250 MHzN/AN/A
@ 500 MHzN/AN/A
Weight lb/1000 ft (kg/1000 m)35 (52)28 (42)
Size in (mm)0.245 (6.22)0.195 (4.95)
AWG2426
Min. Bend Radius in (mm)1 (25.4)0.75 (19.05)
Operating Temp**-55 to 200 °C-55 to 200 °C
RoHS Compliant
Meets FAR 25.853 Flammability Requirements
Meets Boeing/ Airbus Smoke & Toxicity Requirements
Pairs4 Twisted Pairs4 Twisted Pairs
Conductor26 AWG stranded (19x38) Silver-Plated Copper Alloy (0.0189 in / 0.48 mm diam.)24 AWG stranded (19x36) Silver-Plated Copper Alloy (0.0235 in / 0.60 mm diam.)
InsulationExtruded Fluoropolymer (0.045 in /1.143 mm diam.)Extruded Fluoropolymer (0.036 in / 0.91 mm diam.)
BinderSkive PTFE TapeSkive PTFE Tape
ShieldRound silver-plated copper braid
80% minimum coverage (0.230in / 5.84 mm diam.)
Round silver-plated copper braid
80% minimum coverage (0.180 in / 4.57 mm diam.)
JacketWhite or Black PTFE (0.245 in / 6.22 mm diam.)White or Black PTFE (0.195 in / 4.9 mm diam.)

**Available at -65 ºC. Contact us for details.

MX10G-24FLXCheck Inventory
MX10G-26FLXCheck Inventory
