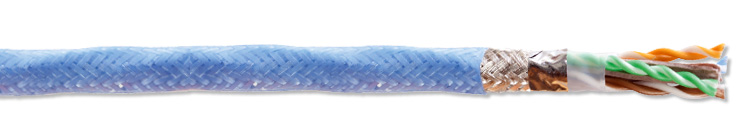

Gigabit-10HP™ cables with bonded pairs and X-Web ensure reliable 10 Gb performance up to 500 MHz at distances of up to 90 m in the most extreme routing and application environments.
Gigabit-10HP™ MX10G-24HP
Impedance 100 Ω
DC Resistance @ 100 ft 2.76 Ω
Velocity of Propagation 70%
Attenuation @ 100 m @ 100 MHz 22.0 dB
@ 250 MHz 32.0 dB
@ 500 MHz 48.0 dB
Weight lb/1000 ft (kg/1000 m) 55 (82)
Size in (mm) 0.290 (7.36)
AWG 24
Min. Bend Radius in (mm) 0.5 (12.7)
Operating Temp** -55 to 150 °C
RoHS Compliant ✓
Meets FAR 25.853 Flammability Requirements ✓
Meets Boeing/ Airbus Smoke & Toxicity Requirements ✓

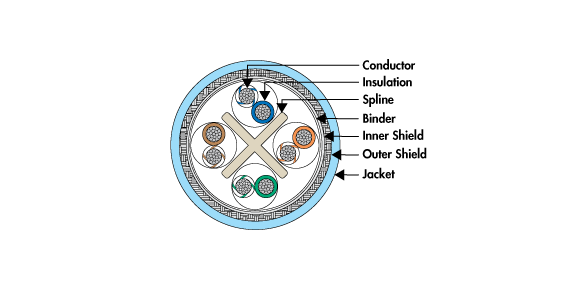

Pairs 4 Bonded Pairs
Conductor 24 AWG stranded (19x36) Silver-Plated Copper Alloy (0.0235 in / 0.60 mm diam.)
Insulation Extruded Fluoropolymer (0.046 in / 1.17 mm diam.)
Spline X-Web
Binder Skive PTFE Tape
Inner Shield Aluminum/Mylar 100% Coverage
Outer Shield Round Silver-Plated Copper Braid 85% Minimum Coverage (0.245 in / 6.22 mm diam.)
Jacket Transparent Blue or Black Extruded FEP (0.207 in / 6.86 mm diam.)
**Available at -65 ºC. Contact us for details.
