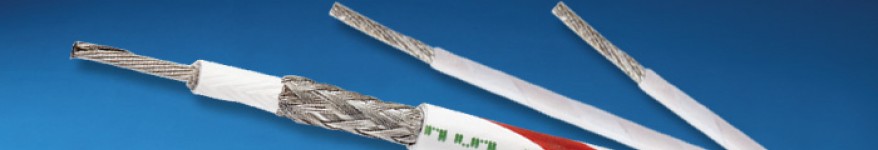

ESW Firezone Cables


A range of high temperature, fireproof and fire resistant single and multi-core cables, incorporating PTFE and Polyimide, specifically designed for use in fire zone areas of the aircraft engine.


Key Features

  • Cable designs to ESW specifications
  • Resist burning and withstand high temperatures
  • Lightweight and space saving
  • Excellent resistance to hydraulic fuel, petroleum and ester-based oils
  • Distinctive red stripe on jacketed versions

Mechanical/Environmental Performance

Reference* Core Type Shielding Jacket Type
Fire Resistant Cable 600V AWG 16 to 22
ESW-1200-010 Single Core Unshielded Unjacketed
ESW-1201-010 Single Core Unshielded Unjacketed
ESW-1202-012 Single Core Nickel Plated Copper PTFE
ESW-1202-022 Multi Core (2) Nickel Plated Copper PTFE
ESW-1202-032 Multi Core (3) Nickel Plated Copper PTFE
ESW-1202-042 Multi Core (4) Nickel Plated Copper PTFE
ESW-1203-012 Single Core Nickel Plated Copper PTFE
ESW-1203-022 Multi Core (2) Nickel Plated Copper PTFE
ESW-1203-032 Multi Core (3) Nickel Plated Copper PTFE
ESW-1203-042 Multi Core (4) Nickel Plated Copper PTFE
Fire Resistant Thermocouple Cable 600V AWG 10 to 20
ESW-1600-010 Single Core (NiCr) Unshielded Unjacketed
ESW-1601-010 Single Core (Al-Ni) Unshielded Unjacketed
ESW-1602-010 Multi Core (2) Nickel Plated Copper PTFE
Fire Proof Cable ● 600V ● AWG 16 to 22
ESW-1250-010 Single Core Unshielded Unjacketed
ESW-1251-010 Single Core Unshielded Unjacketed
ESW-1252-012 Single Core Nickel Plated Copper PTFE
ESW-1252-022 Multi Core (2) Nickel Plated Copper PTFE
ESW-1252-032 Multi Core (3) Nickel Plated Copper PTFE
ESW-1252-042 Multi Core (4) Nickel Plated Copper PTFE
ESW-1253-012 Single Core Nickel Plated Copper PTFE
ESW-1253-022 Multi Core (2) Nickel Plated Copper PTFE
ESW-1253-032 Multi Core (3) Nickel Plated Copper PTFE
ESW-1253-042 Multi Core (4) Nickel Plated Copper PTFE
ESW-1254-010 Single Core Unshielded Unjacketed
ESW-1254-022 Multi Core (2) Nickel Plated Copper PTFE
ESW-1254-032 Multi Core (3) Nickel Plated Copper PTFE

Approvals

ESW 1200, ESW 1201, ESW 1202, ESW 1203
ESW 1250, ESW 1251, ESW 1252, ESW 1253, ESW 1254
ESW 1600, ESW 1601, ESW 1602

Product Categories

Wire & Cable

Product Markets

Commercial Aerospace
Industrial
Military-Defense

More Information

To inquire about ESW Firezone Cables available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.
