EFGLAS Equipment Wire & Cable

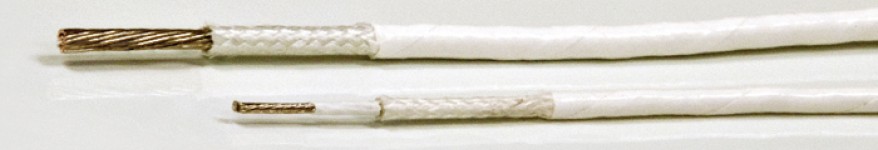

An image of a Panavia Aerospace Cable showing soime of the outer shielding stripped to reveal the cable underneath

A composite insulation of glass and PTFE (Polytetrafluoroethylene), EFGLAS provides extreme strength, abrasion and temperature resistance from the combination of PTFE tape and a PTFE impregnated glass yarn braid. Typical applications include aerospace and aircraft wiring, and industrial applications where high tensile strength is required


Key Features

  • Excellent resistance to fuels, hydraulic fuel and petroleum and ester based oils
  • Operating temperature - 75°C to + 260°C
  • 600 V rating
  • Nickel-plated conductors
  • White with EFGLAS print legend for ease of identification
  • Non-flammable
  • Combination of PTFE tape and a PTFE impregnated glass yarn braid

Product Construction

Crimp Die Part No. Crimp Indicator Style Terminal Lug Base Part Number Aluminum Wire Size (AWG) Crimp Area Gauge Part No.* Indicator Area Gauge Part No.*
999-63002-100 Dot 695-18114-001 10 999-63002-79 999-63002-89
999-63002-100 Dot 695-18114-002 10 999-63002-79 999-63002-89
999-63003-100 Dot 695-18113-001 8 999-63003-79 999-63003-89
999-63004-200 Dot 695-18100-001 6 999-63004-79 999-63004-89
999-63005-500 Dot 695-18101-001 4 999-63005-79 999-63005-89
999-63006-200 Dot 695-18102-001 2 999-63006-79 999-63006-89
999-63006-200 Dot 695-18108-002 2 999-63006-79 999-63006-89
999-63007-200 Dot 695-18103-001 1/0 999-63007-79 999-63007-89
999-63007-200 Dot 695-18104-001 1/0 999-63007-79 999-63007-89
999-63007-200 Dot 695-18105-001 1/0 999-63007-79 999-63007-89
999-63007-200 Dot 695-18109-002 1/0 999-63007-79 999-63007-89
999-63008-200 Dot 695-18106-001 2/0 999-63008-79 999-63008-89
999-63008-200 Dot 695-18107-001 2/0 999-63008-79 999-63008-89
999-63008-200 Dot 695-18110-002 2/0 999-63008-79 999-63008-89
999-63012-100 Plus 695-18111-002 3/0 999-63012-79 999-63012-89
999-63010-100 Plus 695-18112-002 4/0 999-63010-79 999-63010-89

* Cable design not referenced by BS G 222 but available on request where compliance is not a requirement.

Product Information Resources

 EFGLAS Equipment Wire & Cable - Product Table (PDF)
