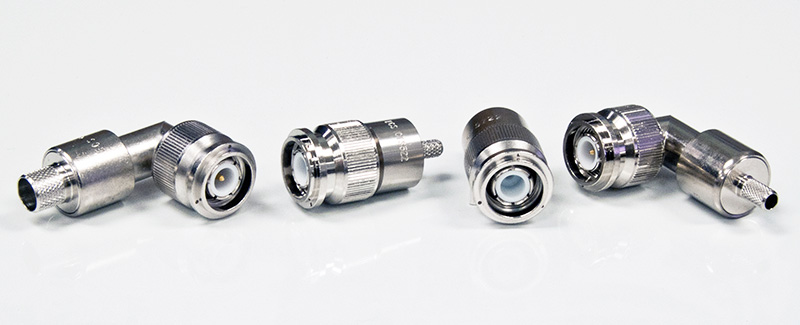

ECS TNC Connectors


Use the following chart to match the desired cable with the required connector.

TNC Connector Types & Corresponding RF Coaxial Cables
Cable Part # 90° 90°
Extended
90°
Long
90°
Self-Locking
Straight Straight Self-Locking Panel Mount Bulkhead
532101 CTR522 N/A N/A CLTR522 CTS522 CLTS522 N/A BTS522
(IGS, STEP)
432101 CTR522 N/A N/A CLTR522 CTS522 CLTS522 N/A BTS522
(IGS, STEP)
352001 CTR3522 CTRE3522
(IGS, STEP)
CTRL3522 CLTR3522 CTS3522 CLTS3522 N/A BTS3522
3C058A CTR722 N/A N/A CTS722 N/A BTS722
3C142B CTR722 N/A N/A CTS722 N/A BTS722
311901 CTR722 N/A N/A CTS722 N/A BTS722
421601 CTR922 CTRE922
(IGS, STEP)
CTRL922 CLTR922 CTS922 CLTS922 RTS922 BTS922
311601 CTR922 CTRE922
(IGS, STEP)
CTRL922 CLTR922 CTS922 CLTS922 RTS922 BTS922
311501 CTR922 CTRE922
(IGS, STEP)
CTRL922 CLTR922 CTS922 CLTS922 RTS922 BTS922
421201 CTR122 N/A N/A CLTR122 CTS122 CLTS122 N/A BTS122
311201 CTR122 N/A N/A CLTR122 CTS122 CLTS122 N/A BTS122
310801 CTR022 N/A N/A CLTR022 CTS022 CLTS022 N/A BTS022
310701 CTR002 N/A N/A CLTR002 CTS002 CLTS002 N/A BTS002
361201 N/A N/A N/A CLTR6222 N/A CLTS6222 N/A N/A
361601 N/A N/A N/A CLTR6622 N/A CLTS6622 N/A BTS6622
311001 CTR102 N/A N/A CLTR102 CTS102 CLTS102 N/A BTS102

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.


Product Information Resources

ECS Avionics RF Assemblies datasheet
ECS Self-Locking TNC Connectors datasheet
Portable Coaxial Cable Stripper Kit datasheet
