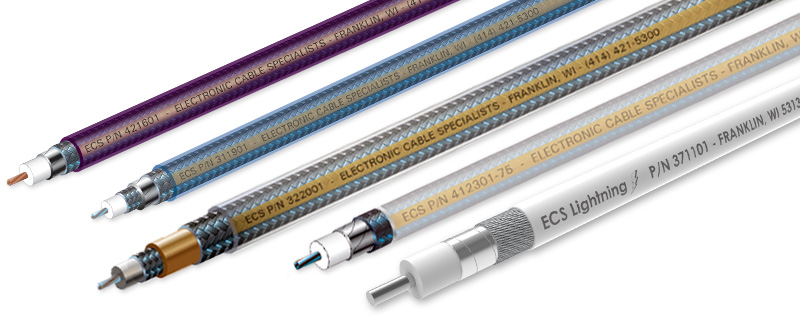

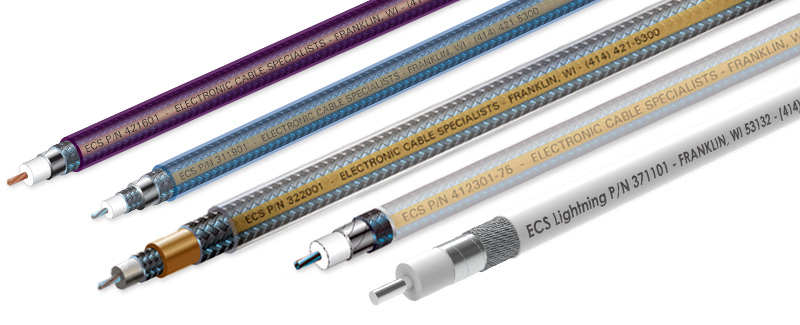

PNs shown top to bottom: 421601 (50Ω Coax), 311901 (50Ω Coax), 322001 (50Ω Triax), 412301-75 (75Ω Coax), and 371101 (50Ω Coax Lightning Series)
Half the diameter of RG cables and up to 75% lighter than MIL-C-17 standard cables, these Avionics RF cables are configured specifically for avionics systems that require a low-loss cable with frequencies between 0 - 12 GHz. Sold in bulk, they are available cut-to-fit or within a kit.
Cuts and strips coaxial cable in 3 seconds. Includes: hand-held driver with a removable NICAD battery pack. 110v A/C 13-hour charger, hard-shell carrying case, and a 1-year limited warranty.
High-performance, lightweight and quality assemblies to reduce your operational costs.
Designed and fabricated to meet industry specifications including MIL-C-39012, ARINC 600, and ARINC 404, our rugged and durable ECS brand Avionics RF Connectors seal out moisture and hydraulic fluids, are durable enough to withstand extreme environmental variations in temperature and pressure, and resist vibration.
Portable Coaxial Cable Stripper Kit datasheet
To inquire about ECS Avionics RF Cables available from Amphenol CIT, please fill out the form below, and one of our Sales Engineers will contact you.
"*" indicates required fields
| PN | Capacitance (pF/foot) | Velocity of Propagation (%) | D.C. Resistance (Ohms/1000') | Time Delay (ns/foot) | Outer Diameter (inches) | Weight (lbs/100') | Bend Radius (inches) | Temp. Range (°C) | # of Shields |
|---|---|---|---|---|---|---|---|---|---|
| 50 Ω Coaxial | |||||||||
| 3C058A | 31 | 70 | 8.5 | 1.46 | 0.195 | 4 | 1 | -55 to +200 | 2 |
| 3C142B | 29.4 | 70 | 19.5 | 1.46 | 0.195 | 4 | 1 | -55 to +200 | 2 |
| 310701 | 25 | 81 | 0.85 | 1.25 | 0.485 | 18 | 3 | -55 to +150 | 3 |
| 310801 | 25.5 | 81 | 0.67 | 1.25 | 0.452 | 19 | 2.26 | -55 to +200 | 3 |
| 311201 | 25.5 | 80 | 1.69 | 1.27 | 0.317 | 8.6 | 1.59 | -55 to +200 | 3 |
| 311501 | 25.5 | 80 | 2.98 | 1.27 | 0.229 | 5.1 | 1.2 | -55 to +200 | 3 |
| 311601 | 25.5 | 80 | 4.1 | 1.27 | 0.229 | 5 | 1.15 | -55 to +200 | 3 |
| 311901 | 29.3 | 70 | 19.5 | 1.46 | 0.195 | 4.3 | 1 | -55 to +200 | 3 |
| 352001 | 25.5 | 80 | 7.5 | 1.25 | 0.162 | 2.7 | 0.81 | -55 to +200 | 2 |
| 421201 | 27 | 80 | 1.69 | 1.27 | 0.313 | 7.5 | 1.6 | -55 to +200 | 2 |
| 421601 | 26.7 | 76 | 4 | 1.34 | 0.205 | 4 | 1 | -55 to +200 | 2 |
| 432101 | 26 | 76 | 9.6 | 1.34 | 0.13 | 1.45 | 0.65 | -55 to +200 | 2 |
| 532101 | 27 | 76 | 14.8 | 1.34 | 0.13 | 1.55 | 0.65 | -55 to +200 | 2 |
| 50 Ω Coaxial Lightning Series | |||||||||
| 371101 | 23.6 | 86 | 2 | 1.18 | 0.279 | 4.28 | 1.6 | -55 to +200 | 2 |
| 371401 | 23.6 | 86 | 3.5 | 1.18 | 0.22 | 3 | 1.2 | -55 to +200 | 2 |
| 50 Ω Triaxial | |||||||||
| 322001 | 29.5 | 69.5 | 8.7 | 1.46 | 0.236 | 5.7 | 1.2 | -55 to +200 | 2 |
| 632101 | 26 | 76 | 9.6 | 1.34 | 0.171 | 2.9 | 0.855 | -55 to +200 | 3 |
| 75 Ω Coaxial | |||||||||
| 3C095U | 17.3 | 70 | 15 | 1.3 | 0.188 | 3.2 | 0.95 | -55 to 200 | 1 |
| 3C179B1 | 19.5 | — | 234 | 1.46 | 0.1 | 1 | 0.5 | -55 to +200 | 1 |
| 412301-75 | 20 | 82 | 23.7 | 1.28 | 0.15 | 1.8 | 0.75 | -55 to +200 | 2 |
| 442001 | 18.5 | 73 | 37.3 | 1.4 | 0.2 | 2.5 | 1 | -55 to +85 | 2 |
| 442501 | 16 | 76 | 37.3 | 1.25 | 0.13 | 1.25 | 0.61 | -55 to +150 | 2 |
| 75 Ω Triaxial | |||||||||
| 322401 | 20.4 | 69.5 | — | 1.46 | 0.246 | 5.8 | 1 | -55 to +200 | 3 |
| 612301 | 20 | 82 | 23.7 | 1.28 | 0.2 | 3.27 | 1 | -55 to +150 | 3 |
