Crimp Die and Die Inspection Gauges

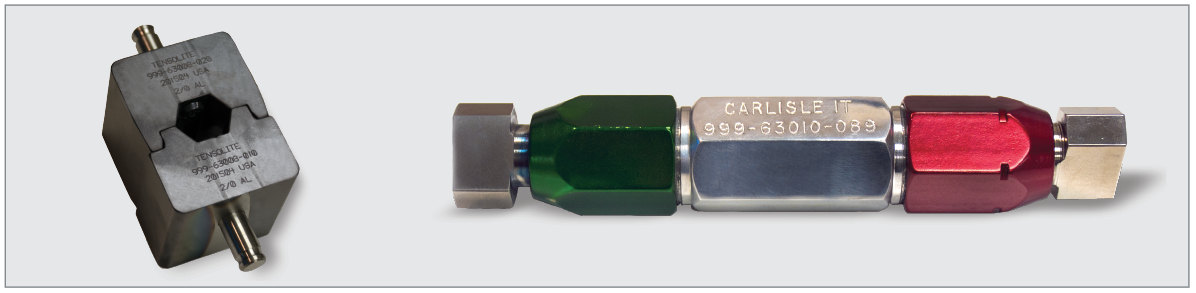

Crimp gauge and die

Crimp Die Part No. Crimp Indicator Style Terminal Lug Base Part Number Aluminum Wire Size (AWG) Crimp Area Gauge Part No.* Indicator Area Gauge Part No.*
999-63002-100 Dot 695-18114-001 10 999-63002-79 999-63002-89
999-63002-100 Dot 695-18114-002 10 999-63002-79 999-63002-89
999-63003-100 Dot 695-18113-001 8 999-63003-79 999-63003-89
999-63004-200 Dot 695-18100-001 6 999-63004-79 999-63004-89
999-63005-500 Dot 695-18101-001 4 999-63005-79 999-63005-89
999-63006-200 Dot 695-18102-001 2 999-63006-79 999-63006-89
999-63006-200 Dot 695-18108-002 2 999-63006-79 999-63006-89
999-63007-200 Dot 695-18103-001 1/0 999-63007-79 999-63007-89
999-63007-200 Dot 695-18104-001 1/0 999-63007-79 999-63007-89
999-63007-200 Dot 695-18105-001 1/0 999-63007-79 999-63007-89
999-63007-200 Dot 695-18109-002 1/0 999-63007-79 999-63007-89
999-63008-200 Dot 695-18106-001 2/0 999-63008-79 999-63008-89
999-63008-200 Dot 695-18107-001 2/0 999-63008-79 999-63008-89
999-63008-200 Dot 695-18110-002 2/0 999-63008-79 999-63008-89
999-63012-100 Plus 695-18111-002 3/0 999-63012-79 999-63012-89
999-63010-100 Plus 695-18112-002 4/0 999-63010-79 999-63010-89

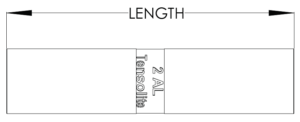

Butt Splices for Aluminum-to-Aluminum Connections

  • For splicing Amphenol CIT TLA-175 aluminum cables
  • Lightweight tin-plated aluminum construction for applications up to 150⁰C

Crimp Die Part No.

Crimp Indicator Style

Splice Part Number

Aluminum Wire Size (AWG)

Crimp Area Gauge Part No.*

Indicator Area Gauge Part No.*

999-63006-200

Dot

640-43071-01

2

999-63006-79

999-63006-89

999-63007-200

Dot

640-43072-01

1/0

999-63007-79

999-63007-89

999-63008-200

Dot

640-43069-01

2/0

999-63008-79

999-63008-89

999-63010-100

Plus

640-43070-01

4/0

999-63010-79

999-63010-89

* GO/NO‐GO Gauges (999 part numbers ending in ‐079 & ‐089) may be purchased from Daniels Manufacturing (DMC). Contact information is: Daniels Manufacturing Corporation, 526 Thorpe Road, Orlando, FL 32824‐8133 USA. Telephone: +1‐407‐855‐6161, Email: dmc@dmctools.com

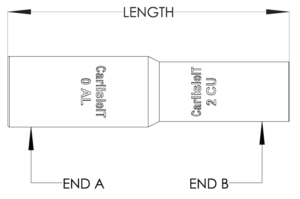

Transition Splices for Aluminum-to-Copper Connections

  • For splicing aluminum cables to copper cables
  • Lightweight tin plated aluminum construction for applications up to 150⁰C
Part No. End A End B Length In Max. Weight (g)
Aluminum Wire Size (AWG) Crimp Die Part No. Copper Wire Size (AWG) Crimp Die Part No.
640-43083-01* 1/0 999-63007-200 2 999-63006-200 2.71 21.9
640-43077-01** 3/0 999-63012-100 1/0 999-63007-200 3.08 35.6

* For use with TLA-175 aluminum cable and TGS-260 copper cable

** For use with 1/0 AWG AD, VY or AM aluminum cable and 2 AWG DR / UST16 & DR / UST17 copper cable


Transition Splice Dies

Part No. End A End B
Aluminum Wire Size (AWG) Crimp Die Part No. Crimp Indicator Style Crimp Area Gauge Part No.* Indicator Area Gauge Part No.* Copper Wire Size (AWG) Crimp Die Part No. Crimp Indicator Style Crimp Area Gauge Part No.* Indicator Area Gauge Part No.*
640-43083-01 1/0 999-63007-200 Dot 999-63007-79 999-63007-89 2 999-63006-200 Dot 999-63006-79 999-63006-89
640-43077-01 3/0 999-63012-100 Plus 999-63012-79 999-63012-89 1/0 999-63007-200 Dot 999-63007-79 999-63007-89
