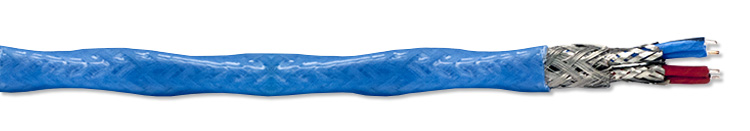

100 Base-T Ethernet Cables – Twisted Pair Construction


NETflight® twisted-pair 100 Base-T Ethernet cables feature our advanced LTE extruded expanded PTFE dielectric for increased velocity of propagation.

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.


Key Features

  • Ideal for a range of high-speed Ethernet applications
  • Small size, lightweight
  • Good flexibility for tight bend radius applications
  • Support 10/100 Base-T Ethernet, ARINC 629 & 664, and Category 5e applications to defined distances
  • Provide stable performance to a wide bandwidth up to 100 MHz
  • Enhanced shielding allows use in severe EMI environments
  • Wide operating temperature rating of -55°C up to 150ºC
  • Excellent resistance to aircraft fluids* Meet FAR 25.853 flammability requirements
  • Meet Boeing and Airbus smoke and toxicity requirements

Product Construction

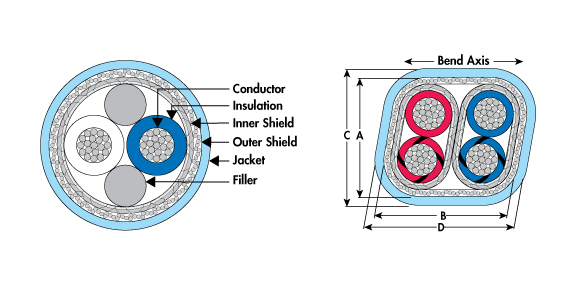

MaxFlite 100-Base-T Shielded Twisted-Pair Ethernet Cable Cutaway


NETflight® 100 Base-T Shielded Twisted PairNF22P100NF24P100
Impedance100 Ω100 Ω
Velocity of Propagation78%78%
Attenuation @ 100 mNom dB/100 ft5.66
Max dB/100 ft 6.77.1
Nom. Weight lb/1000 ft (kg/1000 m)42 (63) 35 (51)
Nom. Size in (mm)0.195 x 0.306 (4.95 x 7.37)0.175 x 0.276 (4.45 x 7.01)
AWG2224
Bend Radius in (mm)1.95
(49.5)
1.75
(44.5)
Operating Temp**-55 to 150 °C-55 to 150 °C
Meets FAR 25.853 Flammability Requirements
Meets Boeing/Airbus Smoke & Toxicity Requirements

**Available at -65 ºC. Contact us for details.

Product Information Resources

NETflight® Ethernet Cables datasheet

High-Speed Digital Data Cables datasheet


Product Categories

Wire & Cable

Product Markets

Commercial Aerospace
Industrial
Military-Defense
