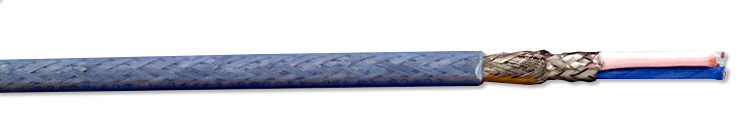

100 Base-T Ethernet Cable - Single Twisted Pair


NETflight® 100 Base-T Ethernet cables with quad construction feature our advanced LTE extruded expanded PTFE dielectric for increased velocity of propagation.

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.


Key Features

  • Ideal for a range of high-speed Ethernet applications
  • Small size, lightweight
  • Good flexibility for tight bend radius applications
  • Support 10/100 Base-T Ethernet, ARINC 629 & 664, and Category 5e applications to defined distances
  • Provide stable performance to a wide bandwidth up to 100 MHz
  • Enhanced shielding allows use in severe EMI environments
  • Wide operating temperature rating of -55 °C up to 150 ºC
  • Excellent resistance to aircraft fluids
  • Meet FAR 25.853 flammability requirements
  • Meet Boeing and Airbus smoke and toxicity requirements

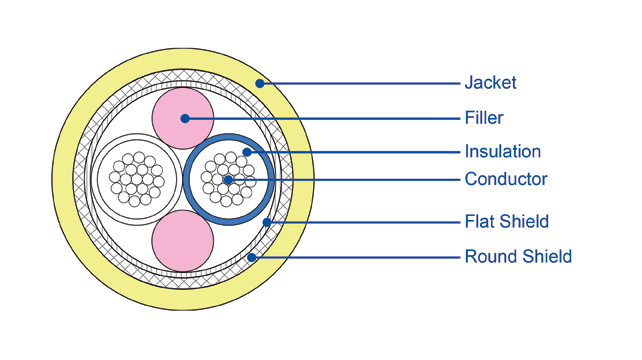

Product Construction

NETflight Single Twisted Pair


NETflight® 100 Base-T Single Twisted PairNF22T100NF24T100NF26T100
Impedance100 Ω100 Ω100 Ω
Velocity of Propagation78%78%78%
Attenuation @ 100 mNom dB/100 ft5.86.68.5
Max dB/100 ft 6.77.79.9
Nom. Weight lb/1000 ft (kg/1000 m)26 (38)18.5 (28) 15.5 (23)
Nom. Size in (mm)0.180 (4.57)0.145 (3.68)0.132 (3.35)
AWG222426
Bend Radius in (mm)1.80 (45.7)1.45 (36.8)1.32 (33.5)
Operating Temp**-55 to 150 °C-55 to 150 °C-55 to 150 °C
Meets FAR 25.853 Flammability Requirements
Meets Boeing/Airbus Smoke & Toxicity Requirements
Conductor MaterialSCCASCCASCCA
Conductor Diameter (in.)0.02950.02330.019
Insulation MaterialPTFEPTFEPTFE
Insulation Diameter (in.)0.0690.0540.044

**Available at -65 ºC. Contact us for details.
