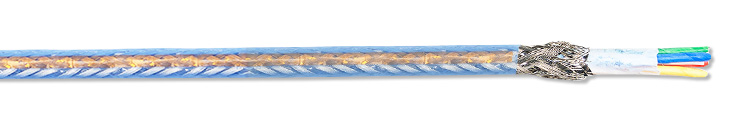

100 Base-T Ethernet Cable - Shielded Quad Construction


NETflight® 100 Base-T Ethernet cables with quad construction feature our advanced LTE extruded expanded PTFE dielectric for increased velocity of propagation.

Available through Amphenol CIT Direct!
Select PNs are available off-the-shelf in low-volume quantities through our Amphenol CIT Direct Service.


Key Features

  • Ideal for a range of high-speed Ethernet applications
  • Small size, lightweight
  • Good flexibility for tight bend radius applications
  • Support 10/100 Base-T Ethernet, ARINC 629 & 664, and Category 5e applications to defined distances
  • Provide stable performance to a wide bandwidth up to 100 MHz
  • Enhanced shielding allows use in severe EMI environments
  • Wide operating temperature rating of -55 °C up to 200 ºC
  • Excellent resistance to aircraft fluids
  • Meet FAR 25.853 flammability requirements
  • Meet Boeing and Airbus smoke and toxicity requirements

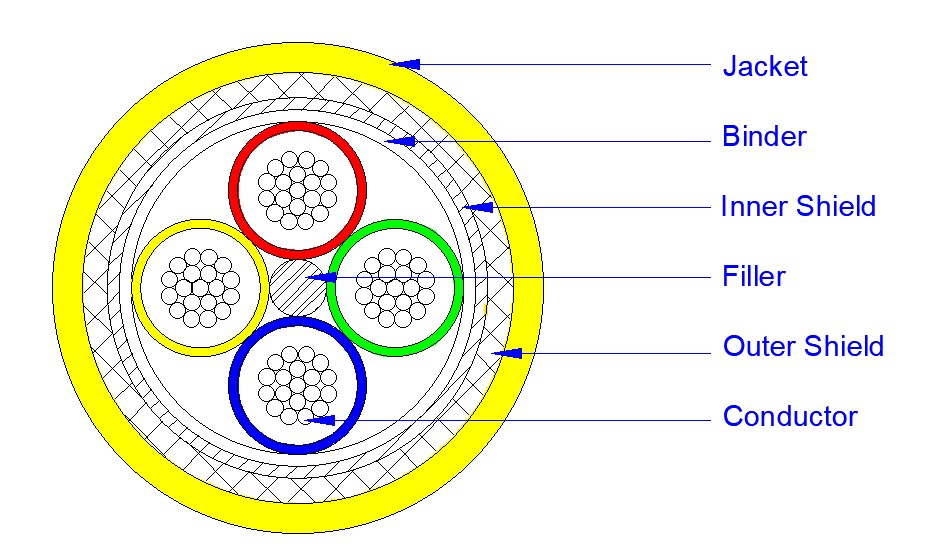

Product Construction

Single Quad


NETflight® 100 Base-T Shielded QuadNF22Q100-01NF24Q100-01NF24Q100-01HPNF24Q100-01-DL-ALWNF26Q100-01
Impedance100 Ω100 Ω100 Ω100 Ω100 Ω
Velocity of Propagation78%78%78%78%78%
Capacitance (pF/ft)1313131313
Attenuation @ 100 mNom dB/100 ft6.48889.3
Max dB/100 ft 7.39.29.29.211
@ 1 GHzN/AN/A32 dB/100 ftN/AN/A
NEXT (dB)3535353535
SRL1616161616
Nom. Weight lb/1000 ft (kg/1000 m)35 (51)24.5 (37) 24.5(36.4) 20.5(30.5) 19(28)
Nom. Size in (mm)0.190 (4.83)0.160 (4.06)0.160 (4.06)0.160 (4.06)0.137 (3.45)
AWG2224242426
Bend Radius in (mm)1.90 (48.3)1.60 (40.6)1.60 (40.6)1.60 (40.6)1.37 (34.5)
Operating Temp**-55 to 150 °C-55 to 150 °C-55 to 200 °C-55 to 150 °C-55 to 150 °C
Meets FAR 25.853 Flammability Requirements
Meets Boeing/Airbus Smoke & Toxicity Requirements
Conductor MaterialSCCSCCASCCASCCASCCA
Conductor Diameter (in.)0.02950.02330.02330.02330.0189
Insulation MaterialPTFEPTFEPTFEPTFEPTFE
Insulation Diameter (in.)0.0550.0450.0450.0450.038
Pair #1Red, BlueRed, BlueRed, BlueRed, BlueRed, Blue
Pair #2Yellow, GreenYellow, GreenYellow, GreenYellow,
Green
Yellow, Green

**Available at -65 ºC. Contact us for details.

NF22Q100Check Inventory
NF24Q100Check Inventory
NF24Q100-01Check Inventory
NF26Q100Check Inventory
NF26Q100-01Check Inventory
